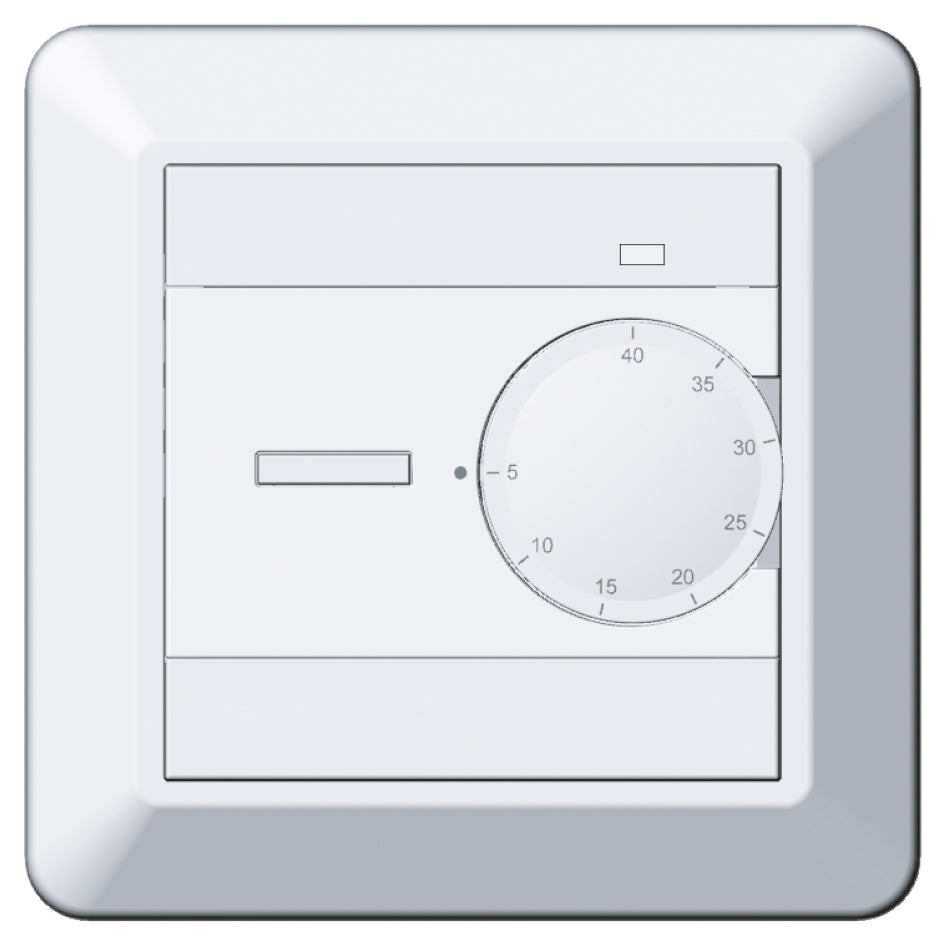

Manual Thermostat

Our stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems

Our standard ON/OFF thermostats provide a precise regulation of the room temperatures across homes and office buildings.

The thermostats are non-programmable and designed to control the temperature by means of floor sensors.

Dimensions

length (mm) height (mm) depth (mm)

85 82 25

Specifications

• Voltage: 100~240VAC 50/60HZ
• Relay contact: 250VAC, 5A (3A)
• Room temperature setting range: 5℃~30℃ (41℉~86℉)
• Floor temperature setting range: 5℃~ 40℃
• Accuracy: ±1℃
• Ambient temperature: 0~50°C
• Protective housing: IP21
• Housing material: PC+AB

Manual thermostat Instructions (Click on Me)
