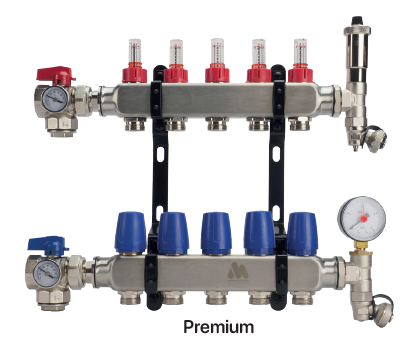

Underfloor Heating Stainless Steel Open Manifold

The European Made stainless steel open manifold , is ideal not only for a Gas/oil fired boiler but can be used  with a Ground source/Air source heat pump.

• Made of strong stainless steel (CRES 4301)
• Manifold consists of loose components

• Manifold for high temperature systems

The European Made stainless steel manifold consists of loose components that are mounted by means of metal brackets. This manifold includes flow temperature gauge, progress ball valves with butterfly handle and integrated manual adjustment valves on the return rail.
The manifold is suitable for high temperature systems and is assembled with flow meters which allows you to manually set the flow of water for each port

Warranty

A warranty of 10 years applies to the pre-assembled stainless steel construction of the manifold.

Please Note

Euroconus Connectors are not included. Please select the right amount (two per port) and add to your order.

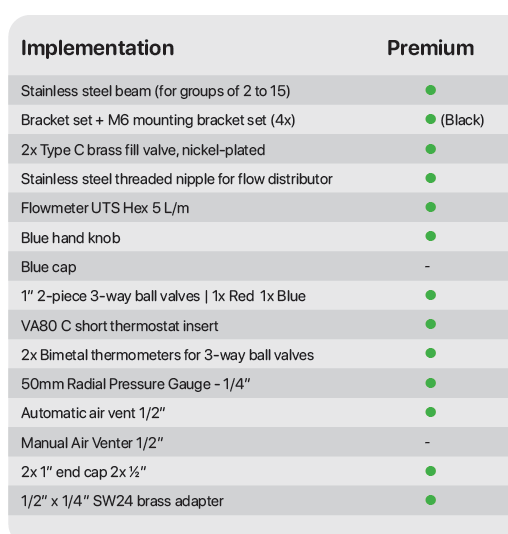

Specifications

Conveniently pre-assembled stainless steel distribution manifold with flow meters, ball valves and blending valve with pump included;

• made of stainless steel (CRES 4301)

• Bracket set + M6 mounting bracket set (4x)
• 2x Type C brass fill valve, nickel-plated
• Stainless steel threaded nipple for flow distributor
• Flowmeter UTS Hex 5 L/m
• Blue hand knob
• 1” 2-piece 3-way ball valves | 1x Red 1x Blue
• VA80 C short thermostat insert
• 2x Bimetal thermometers for 3-way ball valves
• 50mm Radial Pressure Gauge - 1/4”
• Automatic air vent 1/2”
• 2x 1” end cap 2x ½”
• 1/2” x 1/4” SW24 brass adapter

Klima Underfloor Heating Systems

Whether heating up a tiled or wooden floor, demisting a mirror or defrosting pipes, Klima can offer you the perfect wet or electric heating solutions. As specialists in electrical heating, Klima has many years of experience in the development, maintenance and after sales/support of all kinds of electrical and water heating systems as part of many large retailers for many years.

Klima Underfloor Heating is part of the Magnum Group which is a major European manufacturer of Water & Electric Underfloor Heating systems, with its factory based in Holland and it’s UK Head Office based in Scotland. We only manufacture the highest quality products and all our systems come with the highest European Certifications meaning we can offer long realistic warranties on all our product range and a full comprehensive manufacturers support service. Klima has supplied some of the leading wholesales throughout the UK, last year we sold over 20,000 Klima mats. Here are some of the reasons why Klima is the best choice for your underfloor heating requirements.

Buying Klima Underfloor Heating Sytems.

• Quick easy ordering process by website or telephone.
• Directly supplied by the manufacturer ensuring the lowest prices and great service support.
• Highest European approvals and certifications on all products ensuring quality & reliability.
• Over 25 years of Manufacturing & Supplying Underfloor Heating Systems.
• UK based technical support service, along with a full CAD design service ensures your total support along the whole design/purchase/installation process.
• Fast free delivery anywhere in the UK mainland.
• 50 year Water Pipe warranty & Lifetime Warranty on Klima Electric Heating Mats.
• Grundfos A rated Pumps.
