Klima Decoupling Membrane System

£138.60
PRODUCT DESCRIPTION The Klima decoupling membrane is designed to go under a tiled floor finish. The membrane system is designed to improve floor stability and allowing for a easier installation of the underfloor heating cable.  10 year Warranty on Klima Decoupling membrane CE Approved 28 Years + Supplying the Trade...

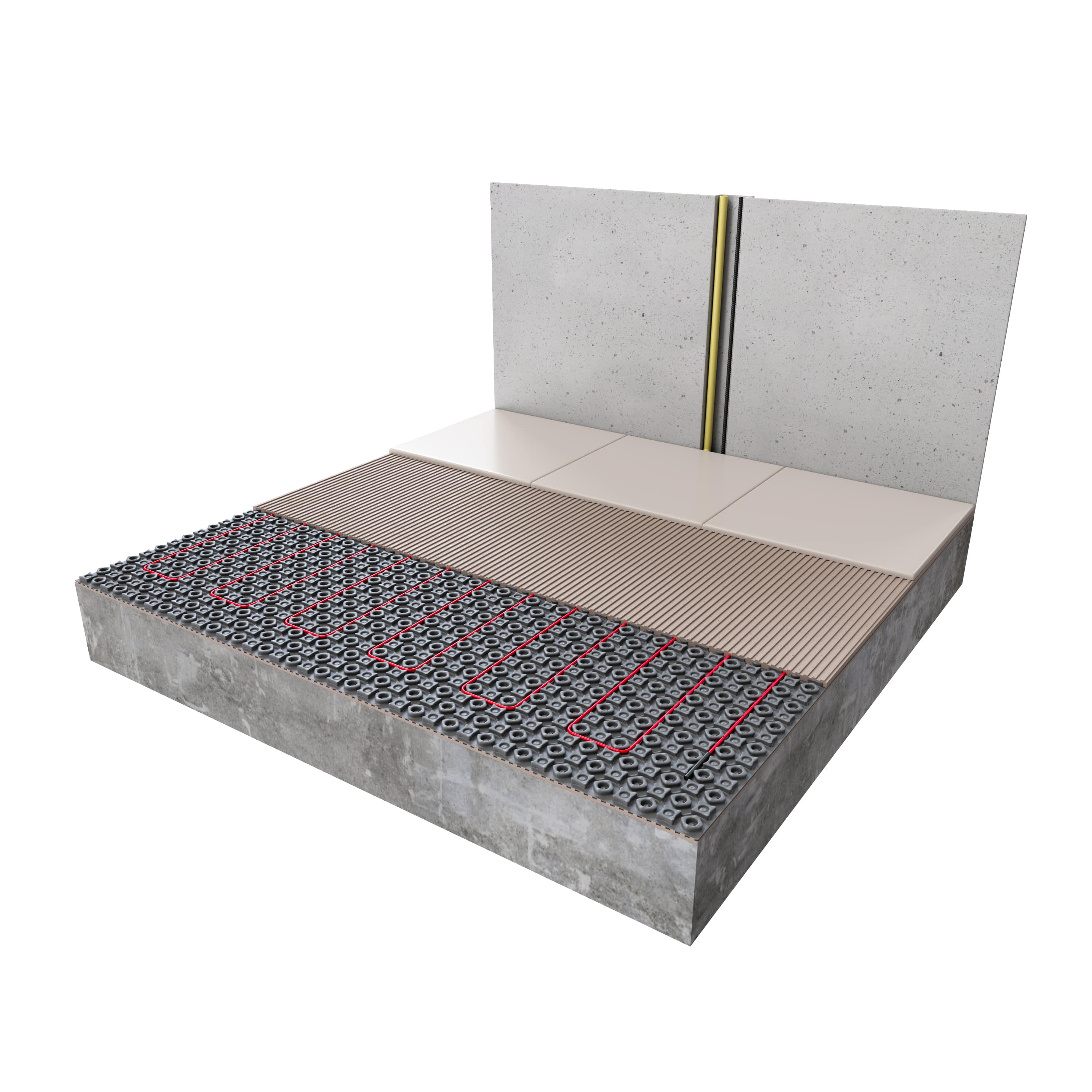

The Klima decoupling membrane is designed to go under a tiled floor finish. The membrane system is designed to improve floor stability and allowing for a easier installation of the underfloor heating cable.

  • 10 year Warranty on Klima Decoupling membrane
  • CE Approved
  • 28 Years + Supplying the Trade

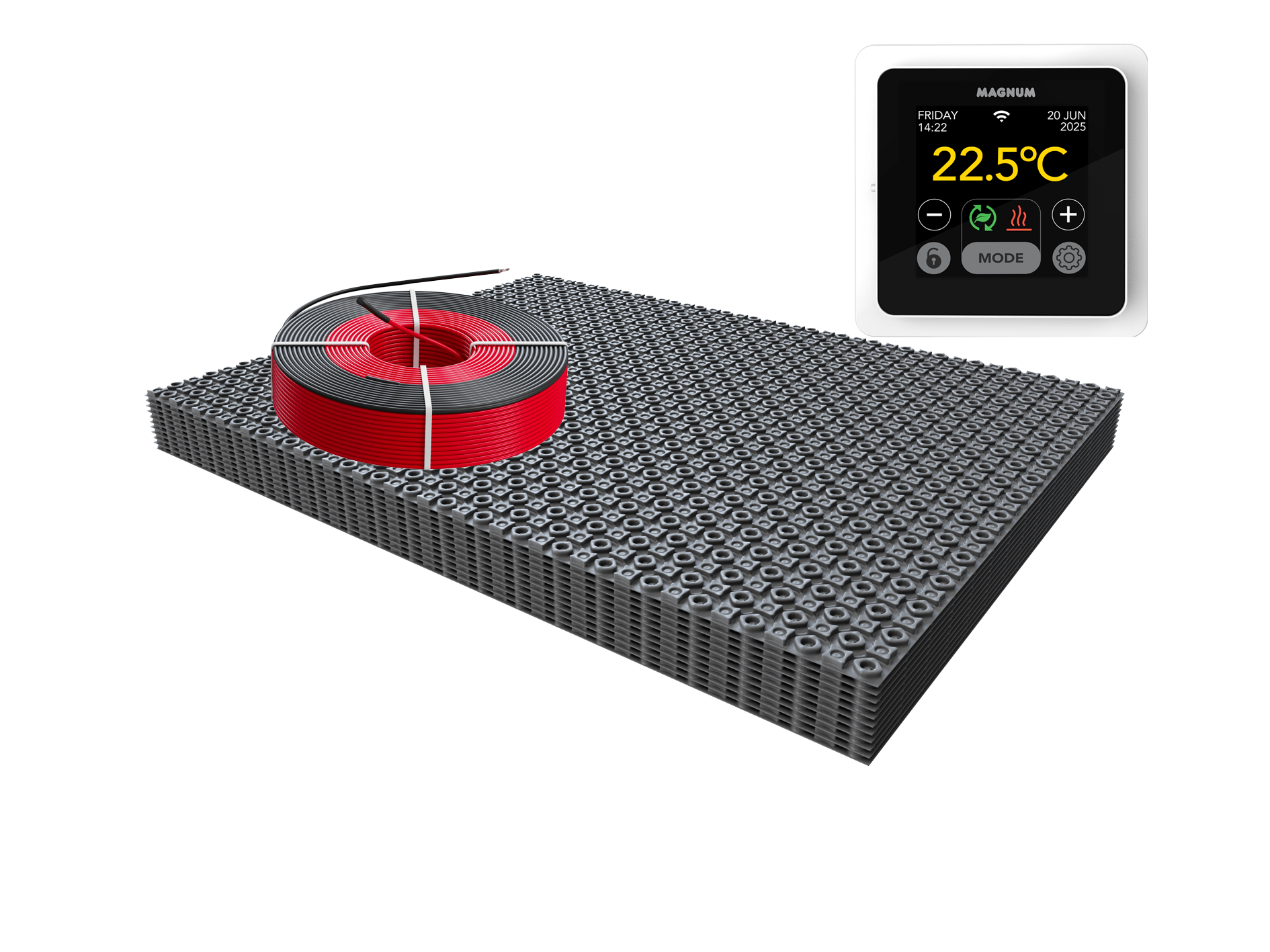

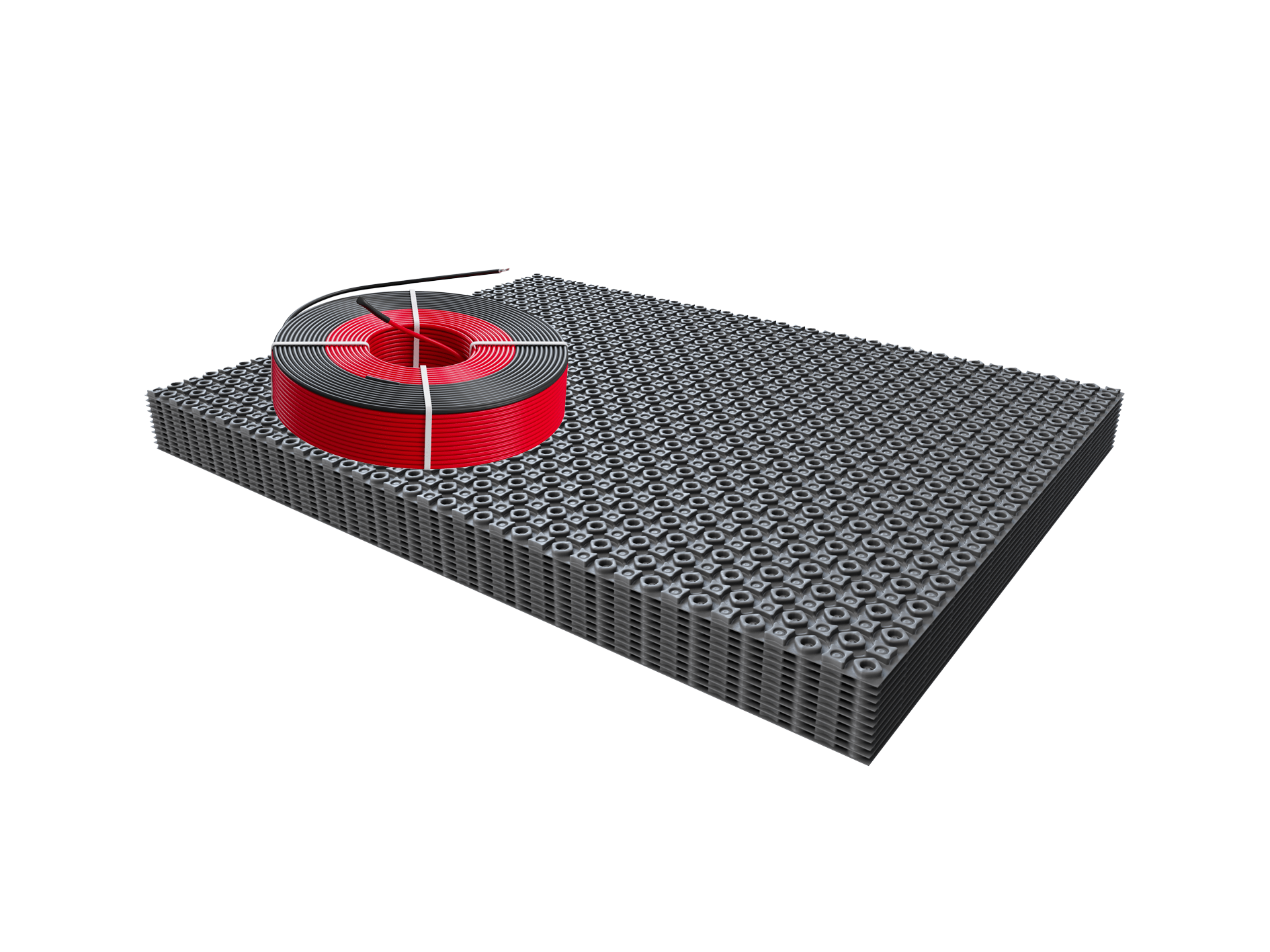

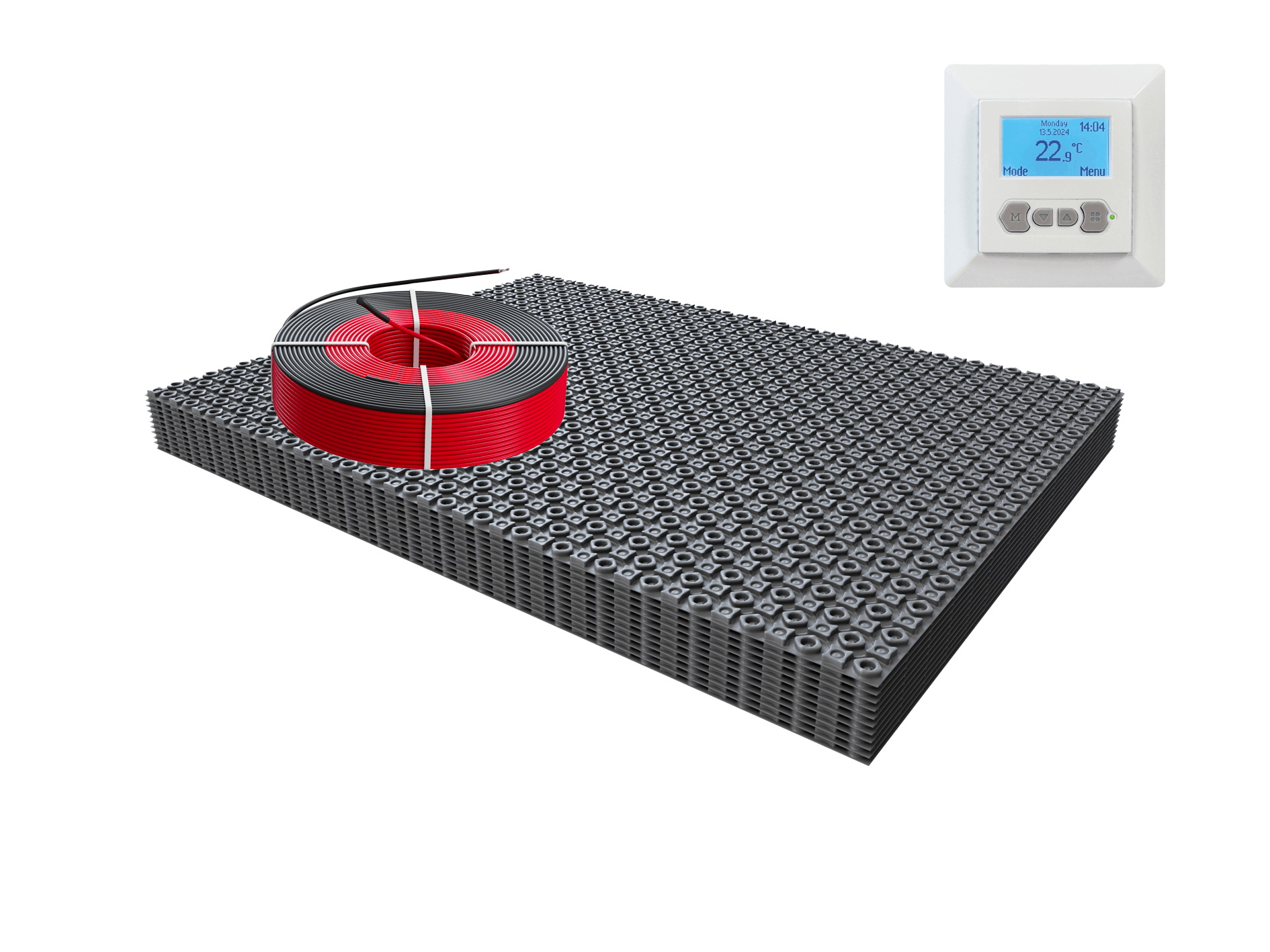

Kit Contents

  • Klima Decoupling Membrane
  • Klima Decoupling Cable system
  • Installation instructions
  • Flexible Sensor Tube

Additional components required

  • Thermostat and Floor Sensor



Full technical support is provided by our experienced UK technical assistance team so you can ensure you purchase the correct system. We'll assist you during installation and we're here to help with any issues following installation.



Benefit

 - Easy installation

- Simple to use

- Helps to increase floor stability and reduce risk of cracking tiles

- Easier to install for awkward shaped rooms

- Changeable heat output ranging from cable spacing at 100mm for 113 watts per sqm to cable spacing at 75mm for 150 watts per sqm

Please Note

The heating cable CANNOT be cut.

A Heat Loss calculation is always recommended to determine whether the system can be used as a primary heat source.

We recommend that you double check and ensure that the correct size of cable will be used for your area.



The Klima decoupling membrane comes with the relevant decoupling membrane sheet depending on the size of area and with the set heating cable size for your area.

With this you are also supplied a 2.5 meter Black hollow conduit pipe and installation instructions.

Additional components

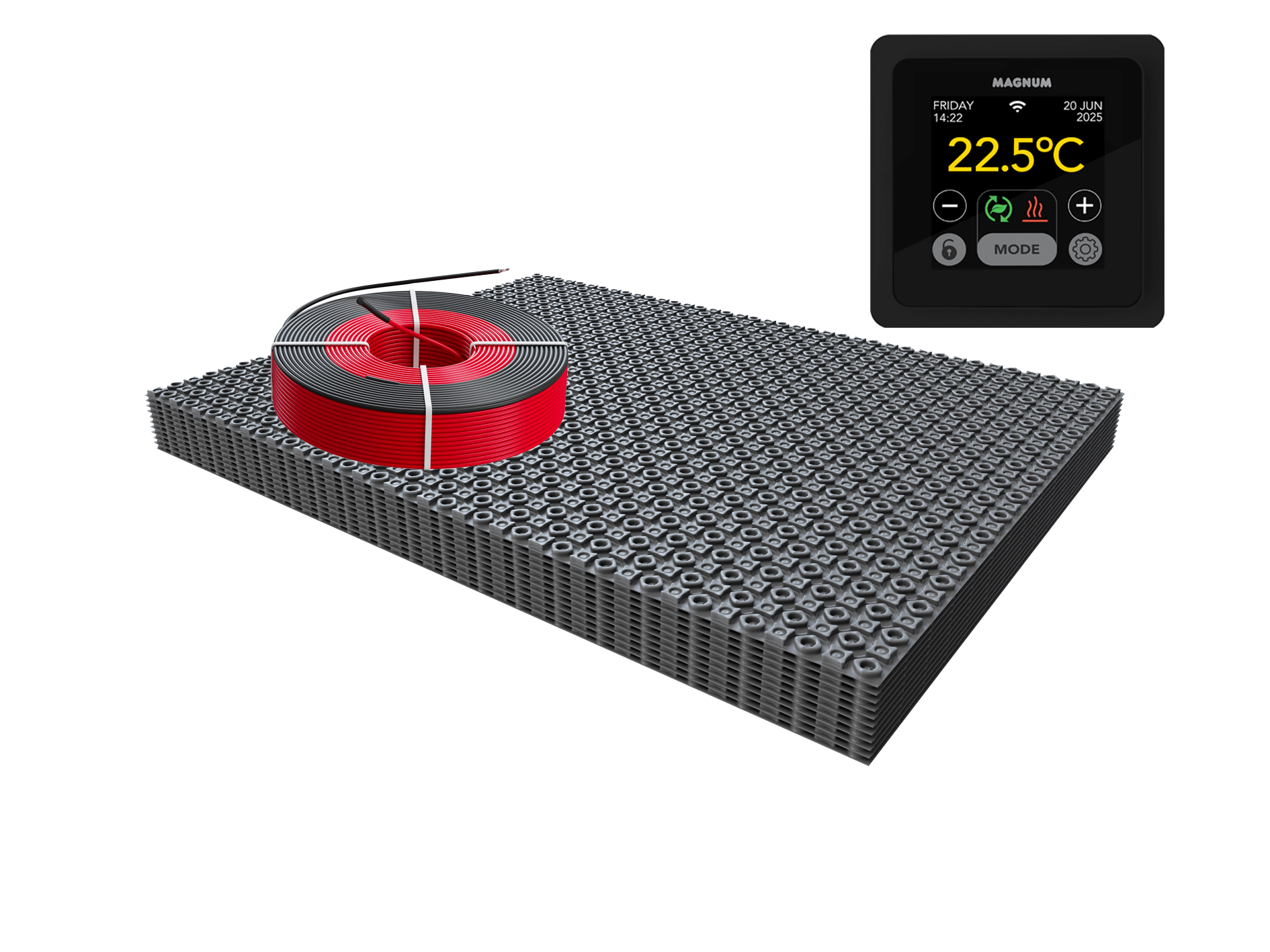

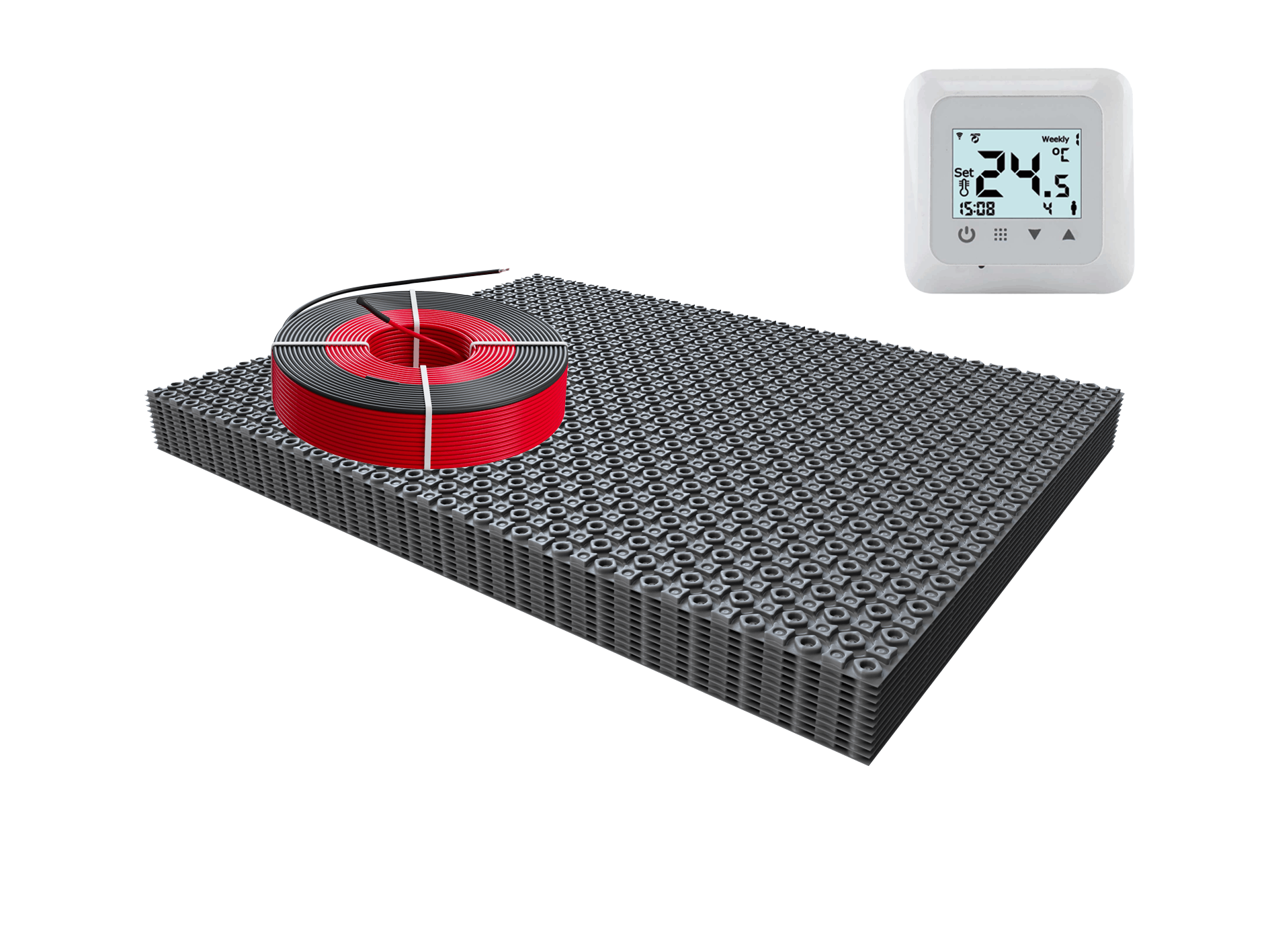

Thermostats (3 Version available) all come with a floor sensor

Specification for Decoupling membrane

Nominal Voltage

230 Volts

Wattage per m²

(113 W/m² @ 100mm spacing or 150 W/m² @ 75mm spacing)

Connecting Wire

3 x 1.5mm²

Connecting Wire Length

5 Metres

Heating Cable Diameter

3 mm

Wattage per Linear Metre

10.5 Watts

Cable Standard

IEC800 Class 11

Heating Element Guarantee

10 Years

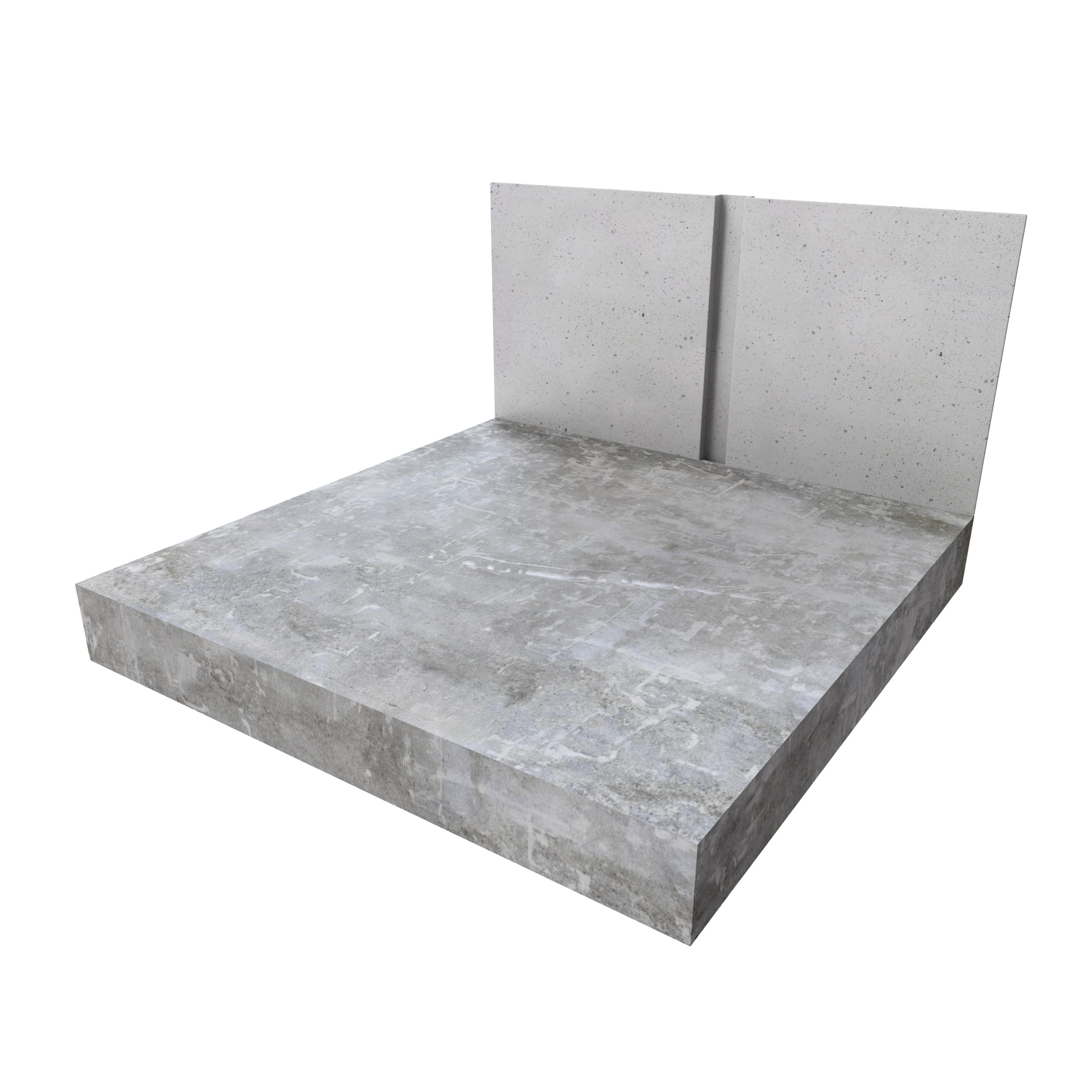

  • Always ensure that a stable subfloor with no movement in it is used
  • Measure the area you want to install the Klima decoupling membrane in, you must maintain a MINIMUM gap of 50mm from walls and fixed furniture. DO NOT INSTALL UNDERNEATH ANY FIXED FURNITURE
  • Apply a thin layer of tile adhesive between 0.4cm to 0.6cm thick

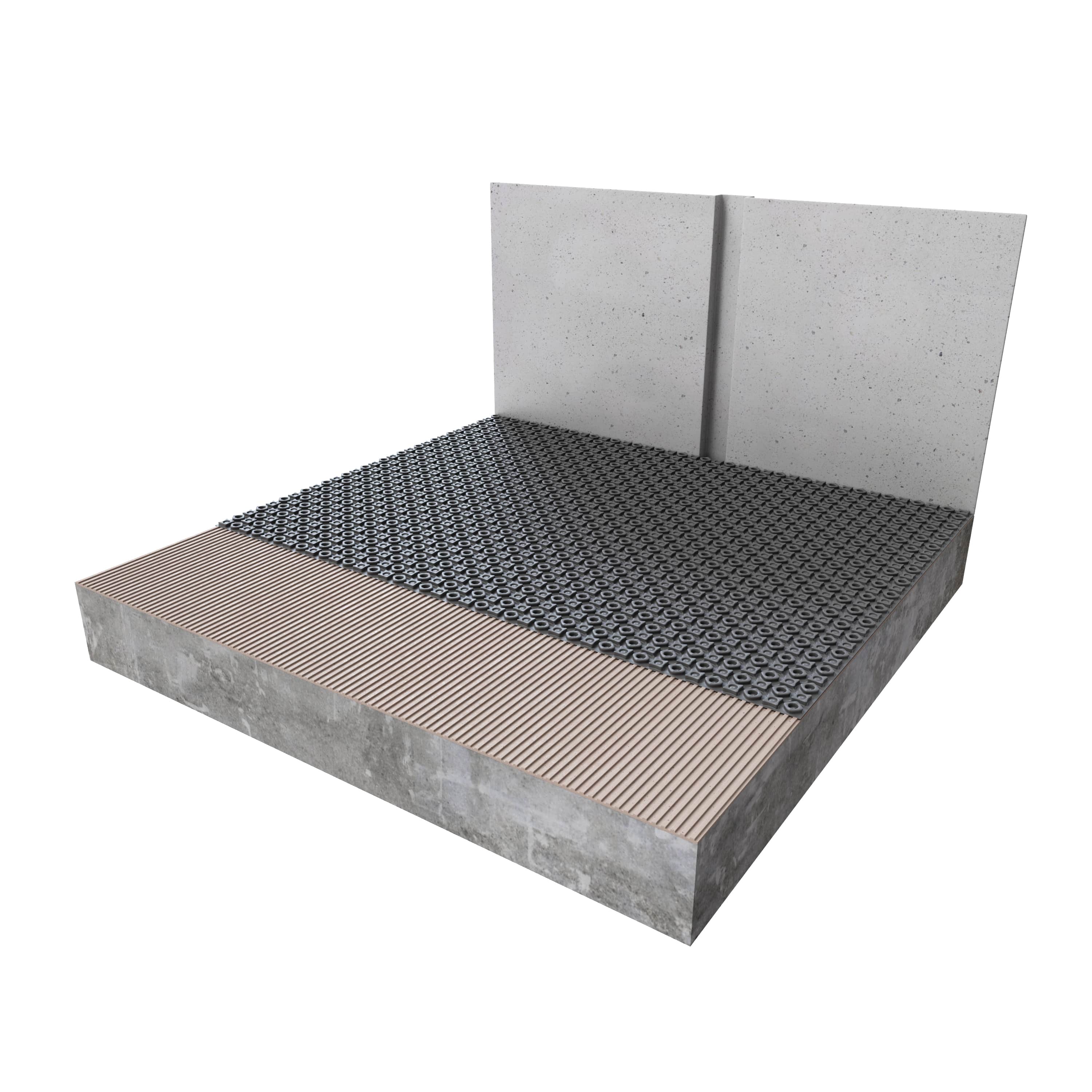

  • Place down the decoupling membrane system onto the subfloor and push gentle so it sticks to the Decoupling membrane

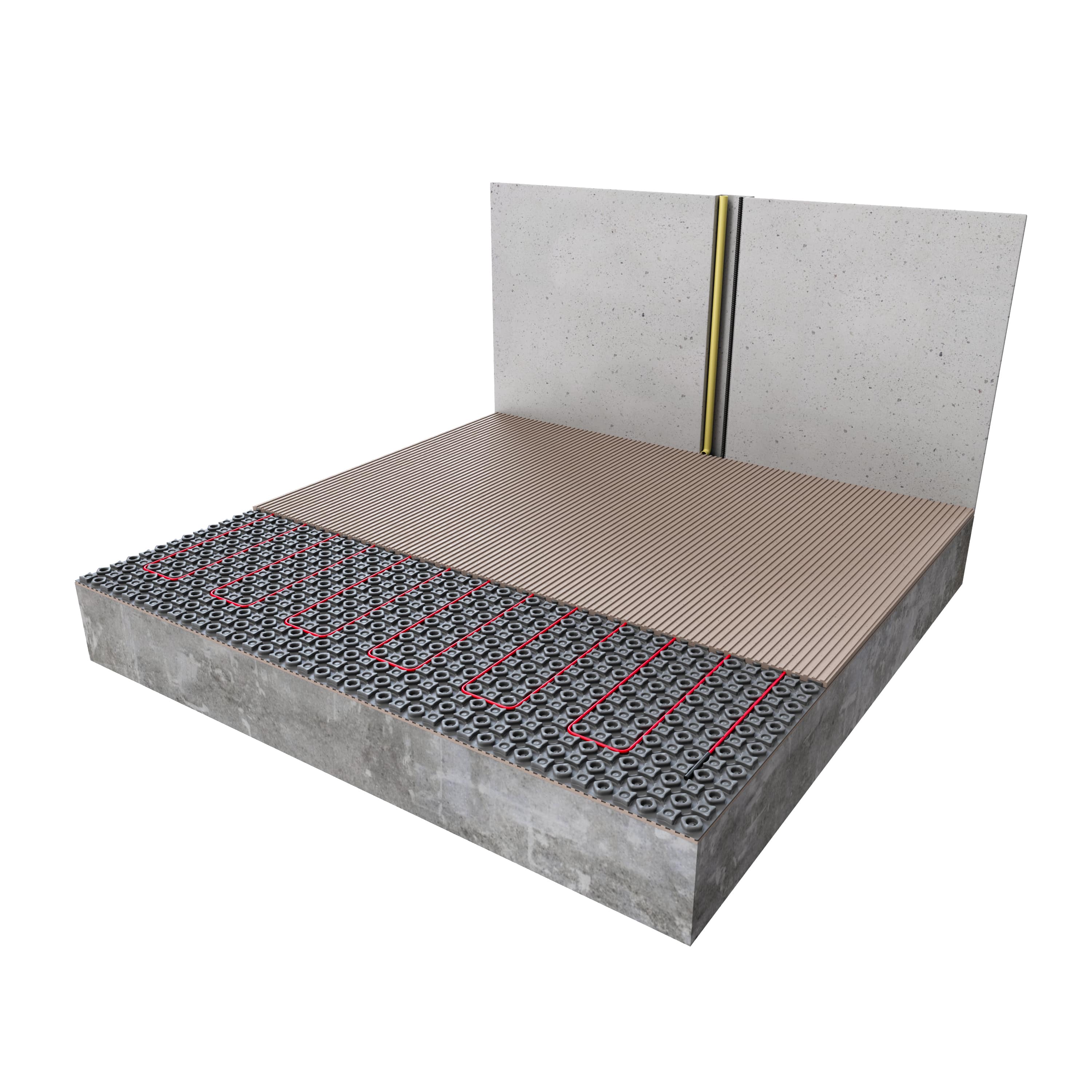

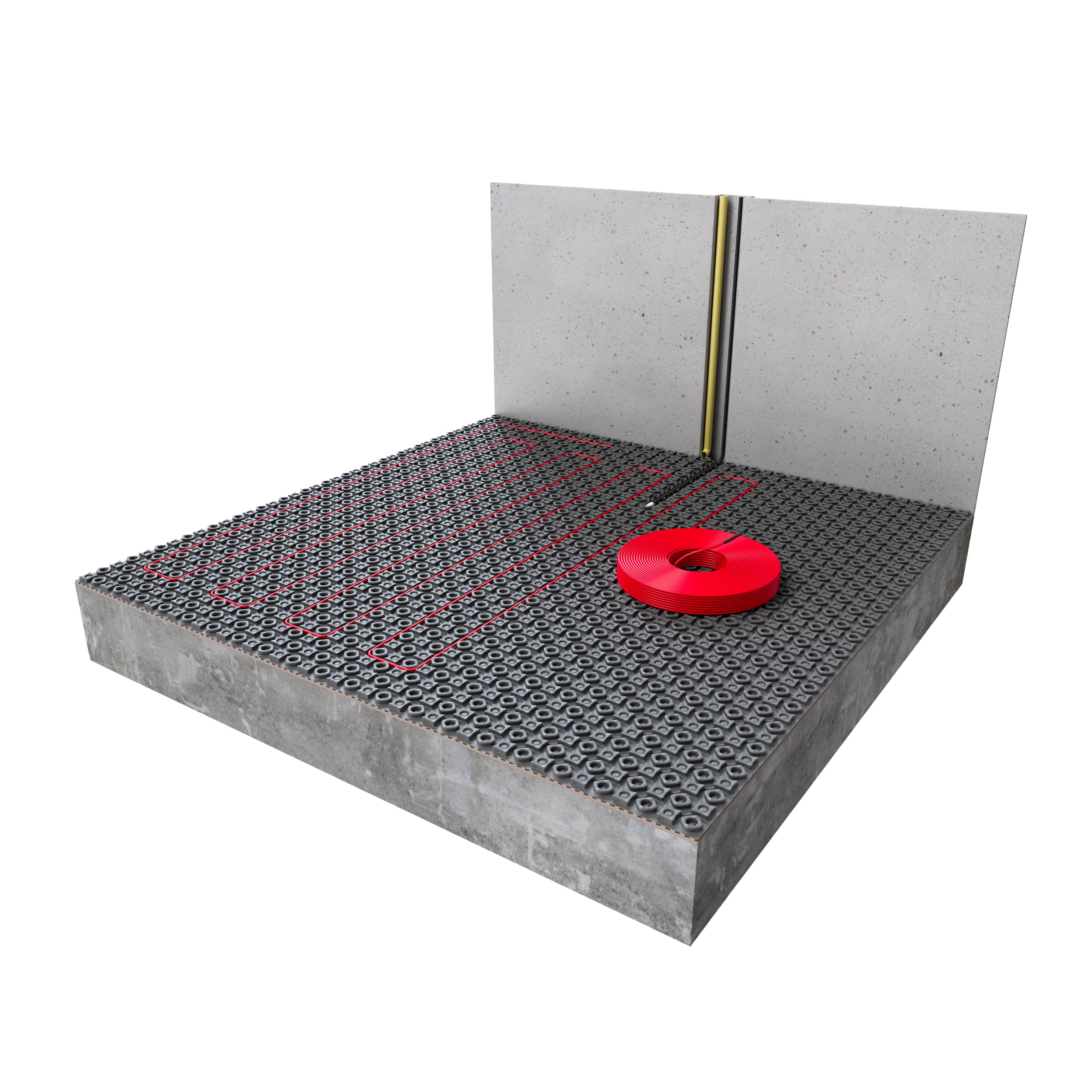

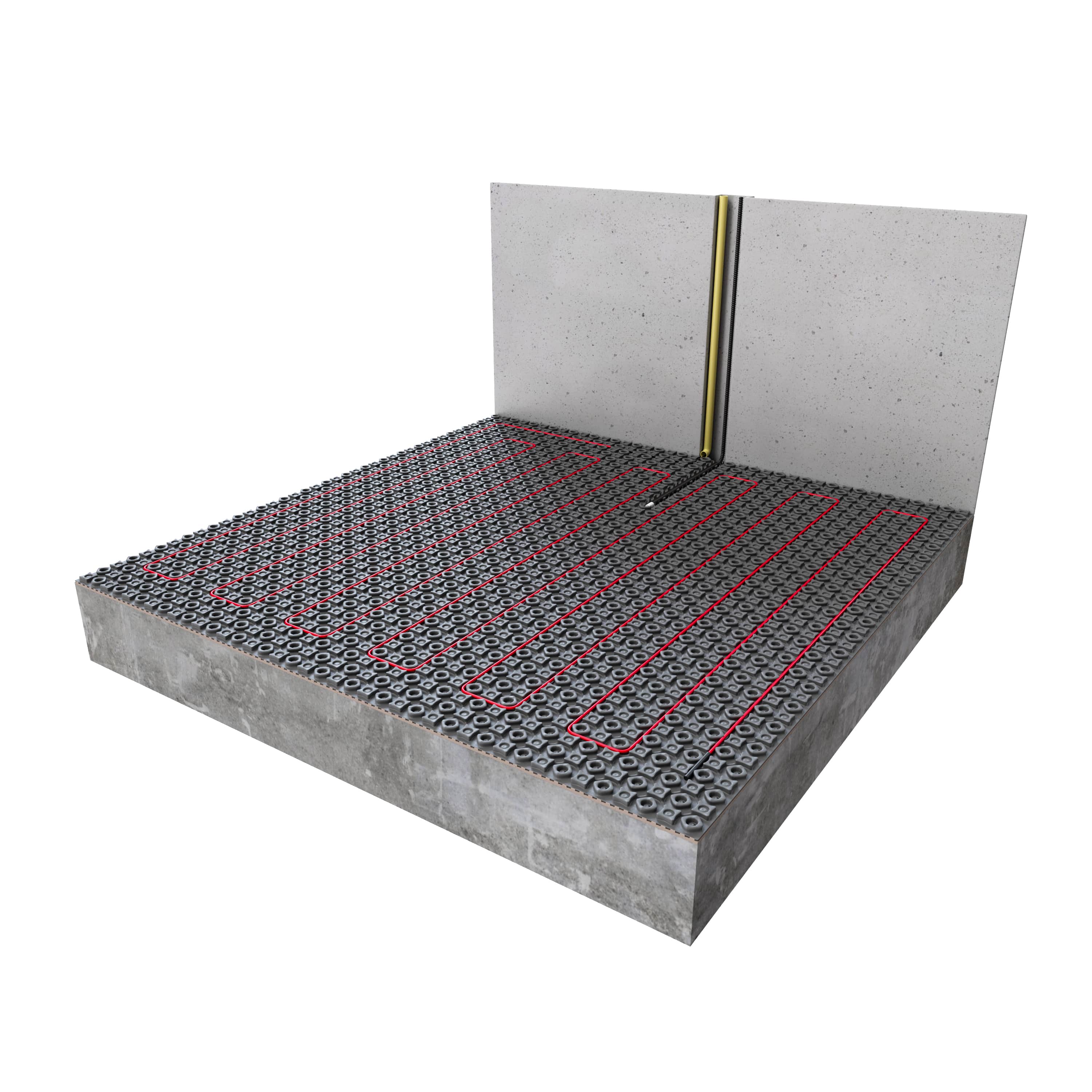

  • Before placing the cable into the decoupling membrane , to decide what wattage you want the system to put out as this will then dictate the cable spacing.
