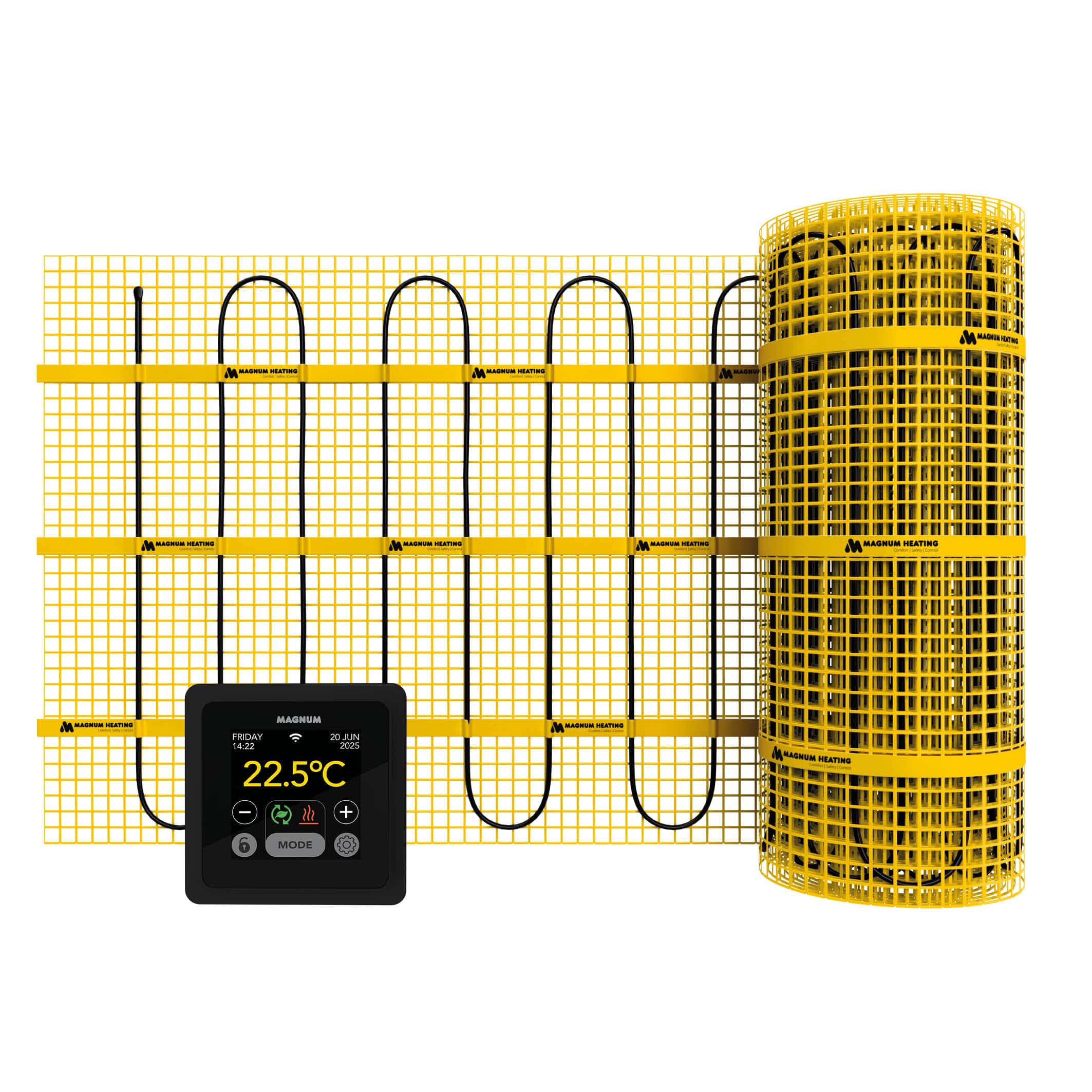

Magnum Mini Mat Kits (0.75m2 - 2.25m2)

8717185495423
d9016e9574e5
£155.75
  Product Details  LIMITED TIME OFFER 20% DISCOUNT, OFFER ENDS 06.05.2024 The MAGNUM Mini Mat system has been designed to be installed on any style of floor finish and directly within the tile adhesive, so no specialist installation is required. The Magnum mat is 3.5 mm thick and does not...



 LIMITED TIME OFFER 20% DISCOUNT, OFFER ENDS 06.05.2024




The MAGNUM Mini Mat system has been designed to be installed on any style of floor finish and directly within the tile adhesive, so no specialist installation is required. The Magnum mat is 3.5 mm thick and does not raise the floor height, allowing for installation under virtually any surface. The installation of the Magnum Mat reduces the heating up time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

MAGNUM Mini Mat is available in many different surface area sizes from 0.75 to 2.25 m². As the heating cable connects through at the ends on the mat, the power supply cable is only on one side and invisibly secured by way of a unique connection. This means that a return to the thermostat is not required.

Guarantee

MAGNUM Mini Mat has a lifetime guarantee on the heating mat and two years covering the thermostat and the floor sensor.




Magnum Mat


(up to 2.25m2)



    • EMC-free 2-conductor cable fitted to fibre-optic net
    • 2.5 meter 3-core supply cable
    • Fully encased in an aluminium earthed sheath
    • Unique blind connection between the heating and the connection cable
    • Chrome/Nickel resistance wire
    • PTFE (Teflon) insulation
    • PVC protective sheath
    • 10 -11 watt per meter resistance wire, 230 Volt
    • Cable diameter approximately 4 mm
    • Mat widths of 25cm
    • Complies with current NEN standards for installation in completely wet rooms





Thermostats


Magnum Remote Control Thermostat
Magnum Remote Control Thermostat

    • Thermostat with Built in wifi function
    • Colour LCD screen
    • Free app , available on both IOS and Android
    • Compatible with Google Assistant and Amazon Alexa
    • 4 back ground Colour themes
    • Slow start up function
    • Wooden floor protection function (limits floor temperature 28°C)
    • Includes Floor sensor (12K) and built in Air Sensor
    • Programming multilingual
    • Suitable for domestic systems


Specification


    • EMC-free 2-conductor cable fitted to fibre-optic net
    • 2.5 meter 3-core supply cable
    • Fully encased in an aluminium earthed sheath
    • Unique blind connection between the heating and the connection cable
    • Chrome/Nickel resistance wire
    • PTFE (Teflon) insulation
    • PVC protective sheath
    • 10 -11 watt per meter resistance wire, 230 Volt
    • Cable diameter approximately 4 mm
    • Mat widths of 25 cm
    • Complies with current NEN standards for installation in completely wet rooms

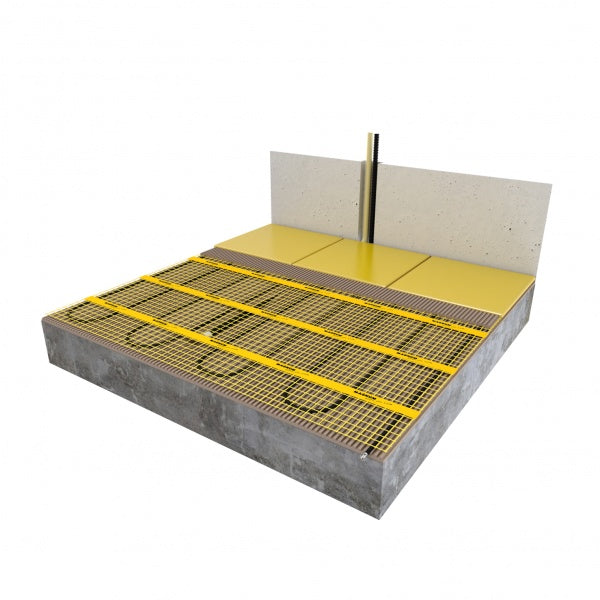

    1. Before you begin, if you are fitting onto an uninsulated or concrete floor it is advisable to first screed.

    1. Lay the first run of matting. At the end of the run cut the fibreglass mat leaving the heating cable, turn the mat 90º or 180º, depending on requirements, and continue laying.

  1. Once completed the entire floor, you can cover the mat with a self leveller and leave to dry before tiling. The matting should not be turned on for minimum 14 days after installation




Magnum Heating


Magnum Heating is a leading manufacturer of professional Electric and Water Underfloor heating systems. With its main factory and distribution based in Holland, Magnum heating has a distributor network throughout the world. Magnum Heating has completed many prestigious projects in the UK and are very experienced in the commercial and domestic underfloor heating markets.

Magnum Heating's philosophy is to manufacture and sell products that meet only the highest certification levels and pride themselves on excellent pre and post sales and technical support. As well as floor heating systems, Magnum is a leading specialised in outdoor deicing systems and frost prevention systems.



Buying Magnum Electric and Water Underfloor Heating Systems


    • Fast and easy ordering process, either by website or telephone.
    • Lifetime warranty on mats and cables.
    • Highest European certifications and approvals on all products, driving quality & reliability.
    • Over 20 years of experience supplying both commercial and domestic underfloor heating.
    • UK based technical support service, along with a full CAD design service ensures your total support along the whole design/purchase/installation process.
    • Fast free delivery anywhere in the UK mainland.
